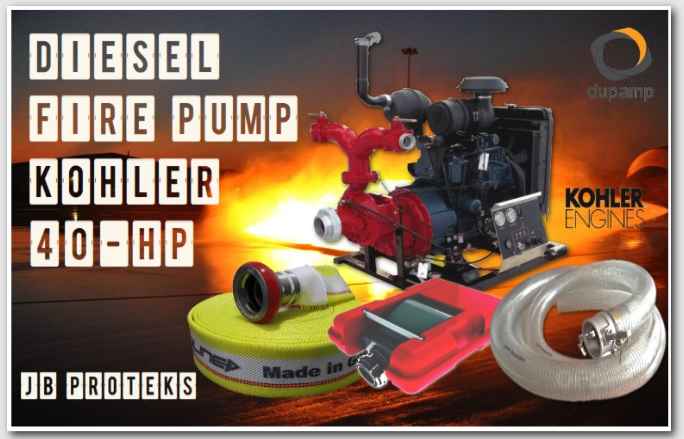

Pompa Kebakaran Diesel Fire Pump

Pompa kebakaran diesel PFPN-40hpKHL-DSL adalah sebuah Fire Pump yang dilengkapi KOHLER Diesel Engine 40.2hp dan the twin-level centrifugal pumps.

Menggunakan mesin 4-tak, tiga silinder berpendingin air, fire fighting pump ini cocok diaplikasikan dalam pemadaman kebakaran yang terjadi di areal hutan, pedesaan, perkotaan dan area pertambangan.

pompa kebakaran diesel fire pump

Spesifikasi Mesin:

  • Brand : Kohler (USA) Diesel 40.2hp (30 kW)
  • Model of engine : 4-stroke 3-cylinders in-line, indirect injection
  • Displacement : 1649 cc
  • Bore x Stroke : 88 x 90.4 mm
  • Fuel type : Diesel
  • Fuel Tank : 30 Liter capacity fuel tank
  • Cooling System : Liquid/ Water cooled
  • Oil Capacity : 4 L
  • Starter : 12 Volt Electric Start
  • Emissions : US Tier 4 Interim
  • Dry Weight : ±156 kg
  • Cooling System : Liquid / Water Cooled

Spesifikasi Pompa

  • Jenis pompa kebakaran : Double-Stage centrifugal pump
  • Material Body dan Impeller : High quality aluminum alloy
  • Electric starter
  • Automatic vacuum priming system
  • Optimum flowrate: 314 gpm @ 7 bar
  • Fire pump head : 145 M
  • Inlet size : 4”
  • Outlet size : 2×2.5”
  • Suction depth max: 9m
  • Priming time pompa kebakaran : ≤20 s
  • Dimension : ±546×404×499mm
  • Dry weight : ±38 kg

Aksesoris Pompa Kebakaran Diesel

  • 1 rol PVC Suction hose 4” x 6 M
  • 1 pc AMPHIBIO Floating strainer 4”
  • 1 rol ARROWLINE Polyester Fire Hose 2.5×20 M
  • 1 pc NOZZPRO pistol grip jet/spray/Fog fire nozzle 2.5”
